Donut and Berliner Production Line – König/Opelka

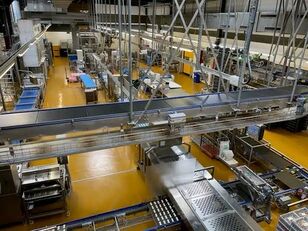

Industrial production line designed for the fully automatic manufacturing of a wide range of fat-fried products, including Donuts, Berliners, and long moulded fried products.

Key Features:

Versatile production: Capable of producing Donuts, Berliners, and moulded fried products.

Complete make-up section with bypass option for tray setting, enabling use as a bun production line.

Automatic final proofing system.

Automatic fat frying system, made in Germany, ensuring consistency and high-quality results.

Integrated cooling and packaging systems.

-------------------------

König / Opelka Donut production line:

1. König dough hopper
– type: TRÖ240
– plastic hopper
– automatic internal oiling
– approx. 240 lt dough capacity
————————————————–
2. König head machine
– type I-Rex T4/3-AW
– 3 or 4 rows adjustable
– working capacity: up to 50 strokes/min
– weight range: 20-100 gr (dep. on dough)
– spreading belt 1900 mm length
– flour duster over spreading belt
– stainless steel
————————————————–

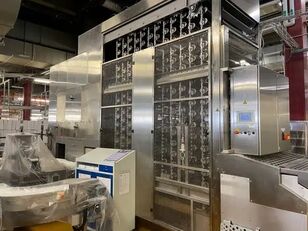

3. König pre proofer
– type: KGV I (600/960)
– working width: 600 mm
– total approx. 960 useable proofing baskets
– proofing time approx. 20 min
– outlet after 480 baskets to an integrated
flatten unit to flat the products
– sterilisation unit and drying zone with blowing
and heating for empty baskets
– plastic baskets with removeable moulds
“- with stamping unit like “”Kaiser”””
————————————————–
4. König long moulder
– working width: 800 mm
– type WDK-RR800
————————————————–

5. König Donut stamping stations

– type: DS800
– working width: 800 mm
– 2 stamping stations for different sizes
– with scrap dough removal

————————————————–

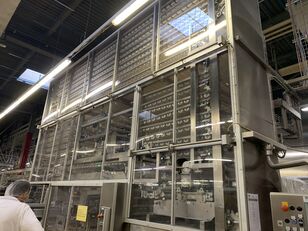

6. König final proofer
– type: KGN I E (1000/400/175)
– working width: 1000 mm
– plastic proofing baskets with easy removeable
and easy cleaning fabric inserts, velcro
– total approx. 400 useable baskets for proofing
– additional 175 baskets external for setting
– UV sterilisation for empty baskets
– drying zone with blowing and heating for empty
baskets, external
– flour duster for empty baskets
————————————————–
7. Fabric insert belt for manual loading
————————————————–
8. Moveable belt to let in the products into fat
frying tank
————————————————–
9. Opelka fat fryer, 8 rows
– type: MagicBaker CleanFlex 3200 LF Terag
– year of construction 2014
– max. fat volume: 280 lt (fryer tank)
– 11850x1740x2405 mm (LxWxH)
– product transport belt system for save drive
through fat fryer with turning unit
————————————————–
10. Product injection unit, 8-row
– automatic filling
– defined holding, filling and hand-over position
– no individual detection
– automatic marmelade feeding
————————————————–
11. Product setting device
– moveable belt for unloading fried products
————————————————–
12. Reservoir with pump
————————————————–

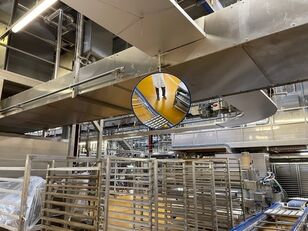

13. Extractor hood
– with fire extinguishing direction
————————————————–

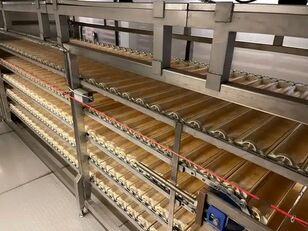

14. Cooling unit
– working width: 1000 mm
– total approx. 250 useable baskets
– baskets 100 mm (bottom), 8-row
– transfer height from Fat Fryer: 1080 mm
– ground clearance approx. 150mm
– not insulated
– cooling with room temperature
————————————————–
15. Washing unit for baskets
– 2 washing tanks exit of proofer
– first tank for suds with 30°C with drain
– second tank for clean, hot water with 60°C
without drain
– cleaning cycle at ending of production
————————————————–
16. Ilapak Carrera 500 packaging machine
– carton tray errector (wrapping of doughnuts)
