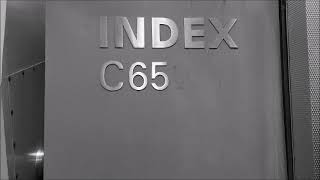

مخرطة المعادن Index C 65

Including bar loader, Profimat 65.8*270/8 year 2005 loading length 500-3000mm.
Spindeleinsatzrohren 16,25,30,40,45,55,60,65mm
(multi-channel loading magazine)
Including chip conveyor
Chucks and tools are not included in the scope of delivery.


basic functions
number of spindles: 2
number of turrets: 3
live positions: yes
number of c-axes: 2
number of y-axes: 3
number of b-axes: 3
Working Range Turning
turning diameter (max): 140 mm
bar diameter (max): 65 mm
worpiece length max.: 600 mm
main spindle
spindle revolutions (min): 1 /min
spindle revolutions (max): 5000 /min
counter spindle
spindle revolutions (min): 1 /min
spindle revolutions (max): 5000 /min
Z-axis travel: 600 mm
X/Z slide
Z-axis travel: 360 mm
X-axis travel: 110 mm
Y-axis travel: 70 mm
rotating range B-axis up to: 1 °
rapid traverse Z: 45 mm/min
rapid traverse X: 25 mm/min
rapid traverse Y: 12 mm/min
number of tool positions (total): 36
number of live positions: 36
- rotation speeds (max): 6000 /min
Electrical specifications
mains power supply: 72 kVA
mains voltage: 400 V
mains frequency: 50 Hz
Dimensions / weights
space requirements -left/right-: 6100 mm
space requirements -front/back-: 1690 mm
total height: 2810 mm
total weight approx.: 6500 kg
attachments (turning)
chip conveyor: yes
through spindle coolant attachment: yes
European CE standards: yes
