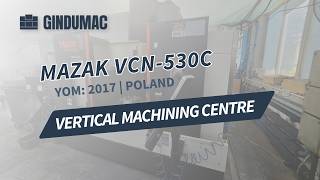

مركز الميكنة متعددة الوظائف Mazak VCN-530C

This 4-axis Mazak VCN-530C was manufactured in 2017. It features an impressive X-axis travel of 1,050 mm, Y-axis travel of 530 mm, and Z-axis travel of 510 mm. The machine includes a robust worktable size of 1,300 x 550 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the Mazak VCN-530C vertical machining centre we have for sale. Contact us for further details.
Location: PL
Control Brand: MAZATROL
Control Model: SmoothG
Tool Stations: 30
Spindle Power: 18.5 kW
Table Load: 1200 kg
Taper Size: SK 40
Operating counter (cutting only): 11,917 h
Distance table surface to spindle nose: 150–660 mm
Distance column to spindle centre: 586 mm
Max workpiece length: 1,300 mm
Max workpiece width: 550 mm
Max workpiece height: 570 mm
Max workpiece weight: 1,200 kg
Table size: 1,300 × 550 mm
T-slots: 5; width 18 mm; pitch 100 mm
Note: Table-load rating does not represent rotary table load capacity
Tool-to-tool change: 1.3 s
Rapid X/Y/Z: 42 m/min
Cutting feed: 1–42,000 mm/min
Coolant tank capacity: 250 L
Floor space (approx.): 2,880 × 3,102 mm
Machine height (approx.): 2,807 mm
CNC memory: 8 MB maximum program size
engine power: 18.5 / 11 / 7.5 kW (duty dependent)
Axis travels (standard VCN 530C)
Work envelope / capacities
Worktable
Spindle
Tooling / ATC
Feed rates
Utilities / dimensions
Included machine features (PD081 production package)
Workpiece air blast
High-pressure through-spindle coolant
Coolant flushing of machine covers
Synchronous tapping
G00 Slope Constant rapid-movement optimisation
Additional equipment
Fourth axis
Tsudakoma NC rotary table
model RNE-200L (Japan)
with 250 mm faceplate
Fourth-axis preparation on machine
Chip management
Left-side Crowther hinged-belt chip conveyor
Preparation for a left-side chip conveyor
Probing
Renishaw OMP60 workpiece probe
Preparation for OMP60 on machine
Extraction
Filtermist FX6002 oil mist extraction unit
Other
Workholding system
Pneumatically powered coolant wash gun
